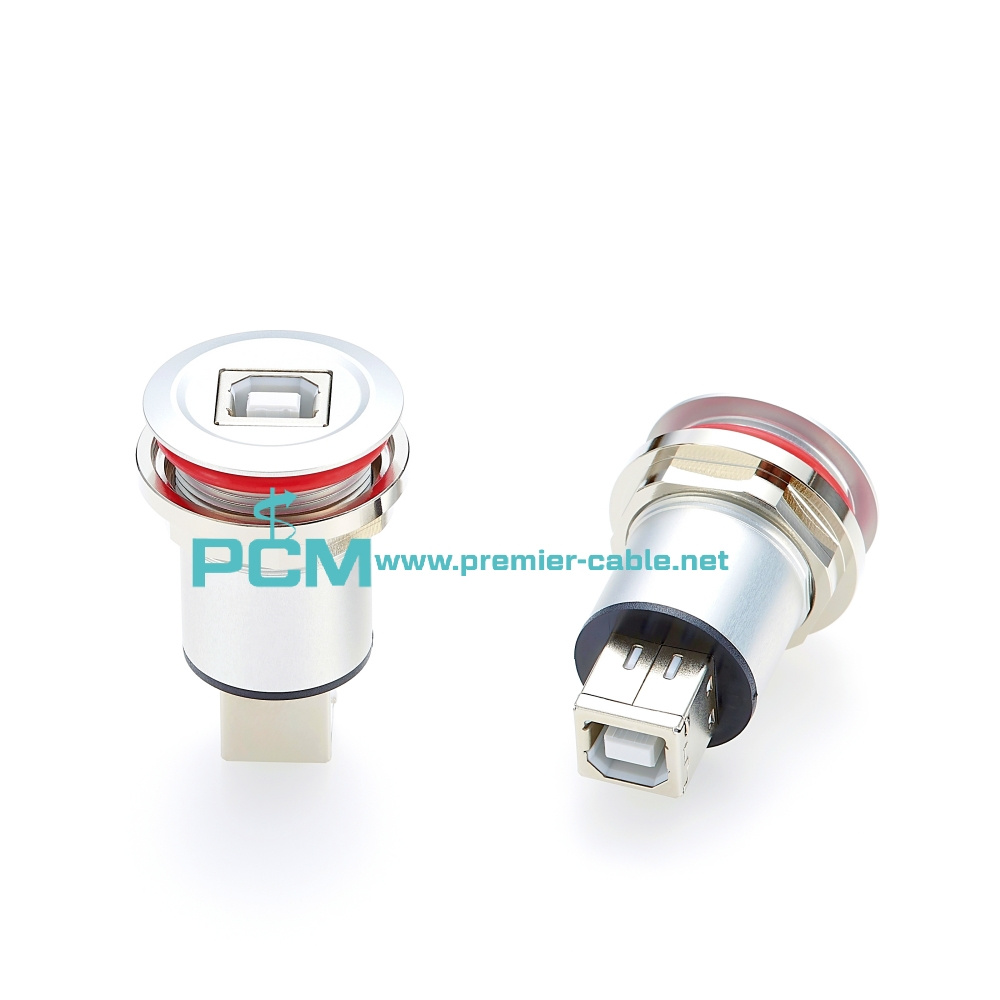

22mm USB-B Female to Female Feedthru Panel Mount Socket
Number:
PCM-0567
Category:
Round Panel Mount Aluminum
Detail
| Product Name | 22mm Aluminum USB Type B Round Panel Mount Adapter |
| DWG No. | PCM-0567 |
| Connector A | USB2.0 Type B Female |
| Connector B | USB2.0 Type B Female |
| Shape | Circular, Pass-through |
| Shell Material | Aluminum Alloy Shell |
| Panel Mount Type | Back Locking |
| Shell Diameter | 22mm |
| Panel Cut-Out Size | 23mm |
| Waterproof Cap | For choice, it can be equipped if you need |
| Compatible Brand | Murrelektronik, Harting, MISUMI, Adafruit, Weidmueller, Eaton, Emas, Telegaertner, Schneider Electric |
| Application: 86 type panel, Audio & Video box, stage box, medical equipment, intelligent equipment, Multimedia panel, computer case, automotive wiring harness, submarine, yacht, ship, boat, smart home, panel installation, cabinet installation, chassis installation, industrial control equipment, charging piles, etc. | |
Where is the USB Type B Interface Panel Coupler Used?
The 22mm USB B Panel Coupler is widely used in various devices and environments, mainly for connecting devices that require data transmission. Its design features and application scenarios are as follows:
1. Printers: One of the most common applications of USB2.0 Pass Through Printer Adapter is on printers. Printers usually use the Type B port to connect to computers for data transmission and printing jobs.
2. Scanners: Many scanners also use the USB-B Female Feedthru Socket to connect to computers. This allows scanned images or documents to be transferred to the computer for processing.
3. External hard disks and storage devices: Some external hard disks and storage devices may use the USB Type B Chassis Bulkhead. Although many modern devices have now moved to USB Type C or other interfaces, older devices are common on USB Type B.
4. Audio devices: Some high-end audio interface devices, such as audio interfaces and external sound cards, also use the USB-B Round Panel Mount Adapter to connect to computers. These devices usually require high-quality data transmission to ensure high fidelity of audio signals.
5. Industrial equipment: In industrial environments, Aluminum USB-B Round Panel Mount Industrial Adapter are used to connect various devices such as sensors, PLCs (programmable logic controllers), and other automation equipment. The USB Type B Panel Socket in these applications usually needs to have high durability and stability to adapt to harsh working environments.
6. Medical equipment: Some medical devices (such as imaging equipment and test instruments) use USB Type B Feedthru Coupler to connect to computers or other devices for data transmission and device control. USB interfaces in medical environments require high reliability and stability.
The USB-B Female Feedthru Panel Mount Socket on a printer is usually rectangular and has a sturdy connector to ensure stable data transmission. The application of the USB Type B interface is mainly concentrated in data transmission scenarios that require a fixed and stable connection. Although modern devices are increasingly using USB Type C or other interfaces, USB Type B still plays an important role in many devices.
