Premier Cable Panel Mount Ethernet Extender Cat5E Terminal

This RJ45 CAT5E Female Plug to 8P8C Female Screw terminals is widely used in networks. Its design is based on industrial standard panel apertures.

Category:

Terminal Block


Detail

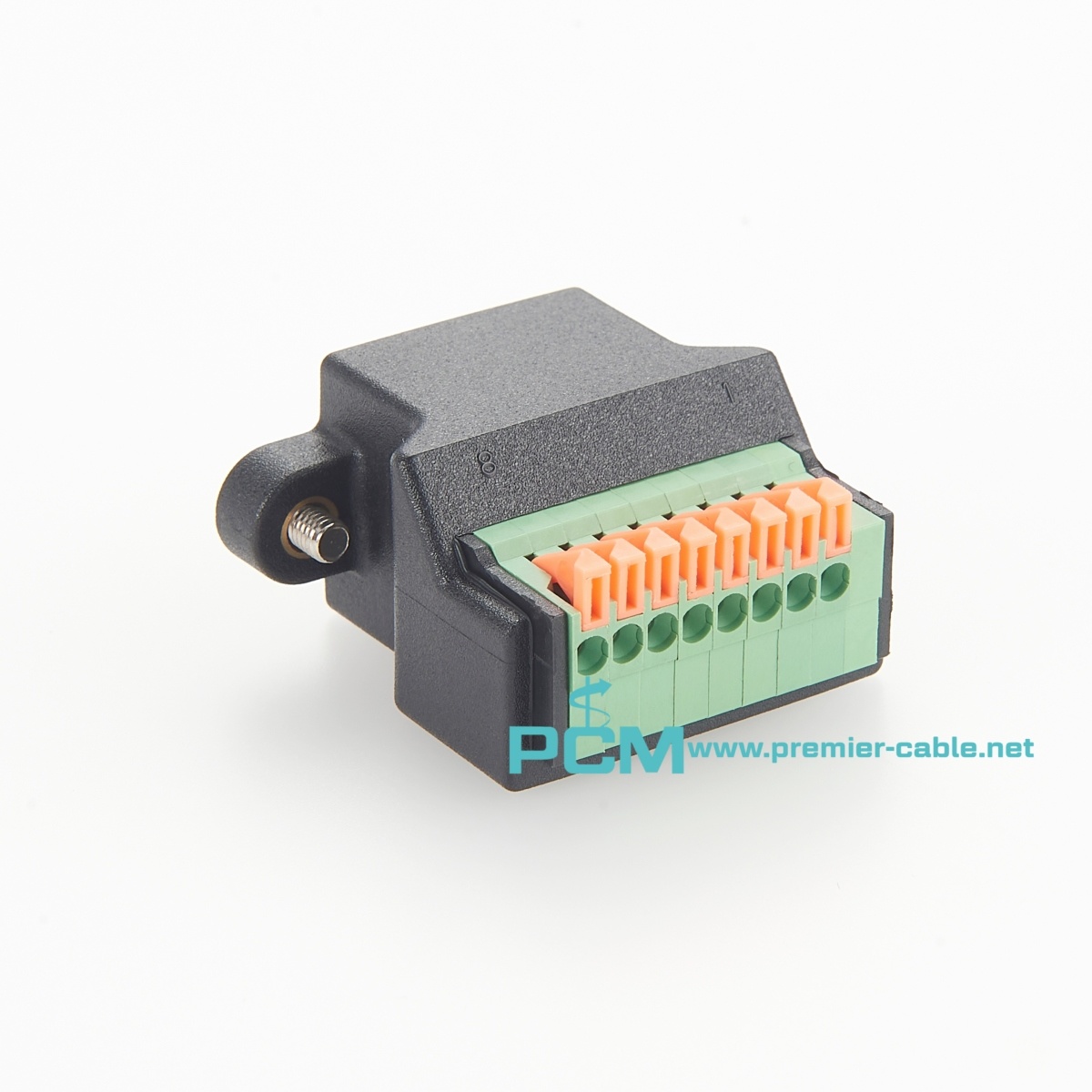

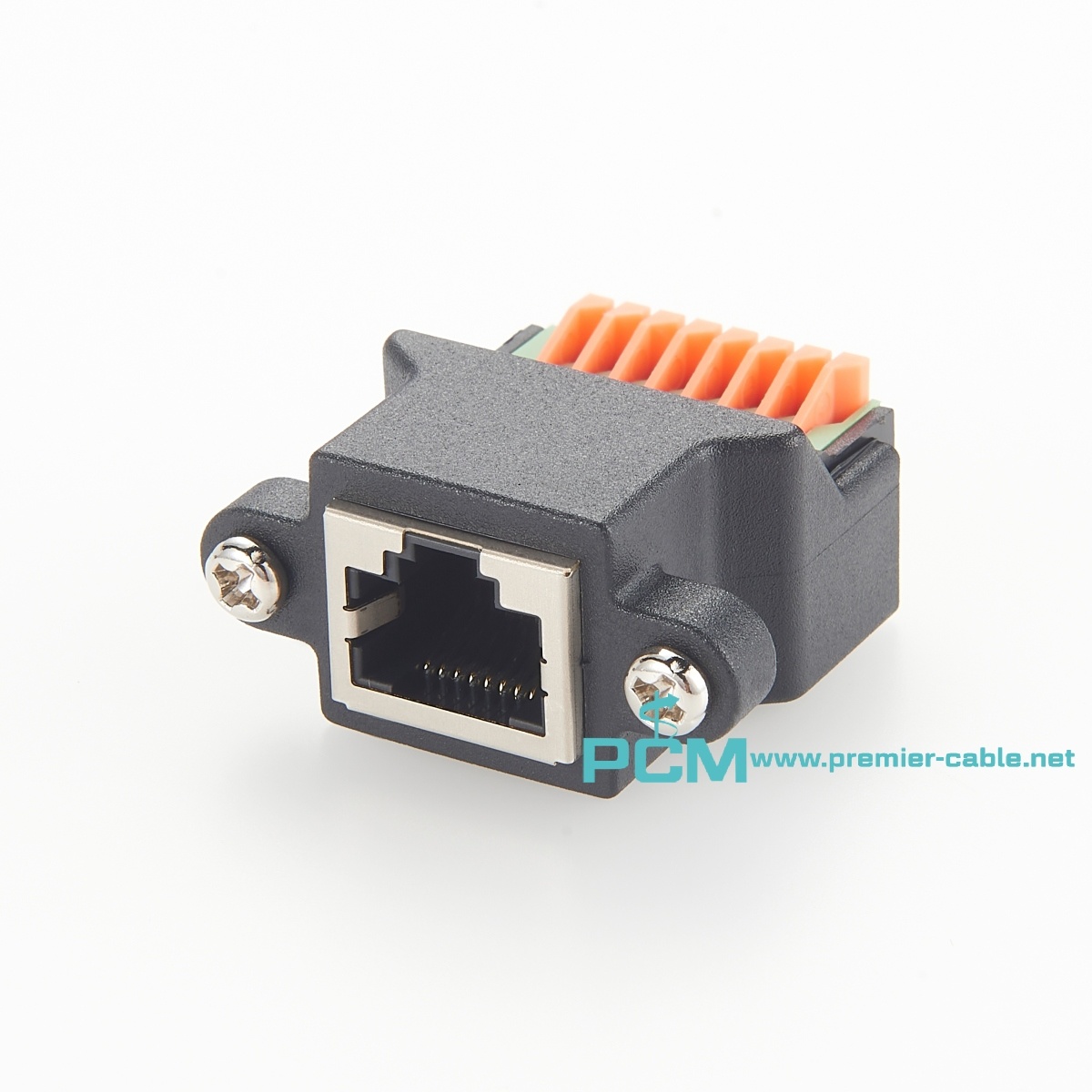

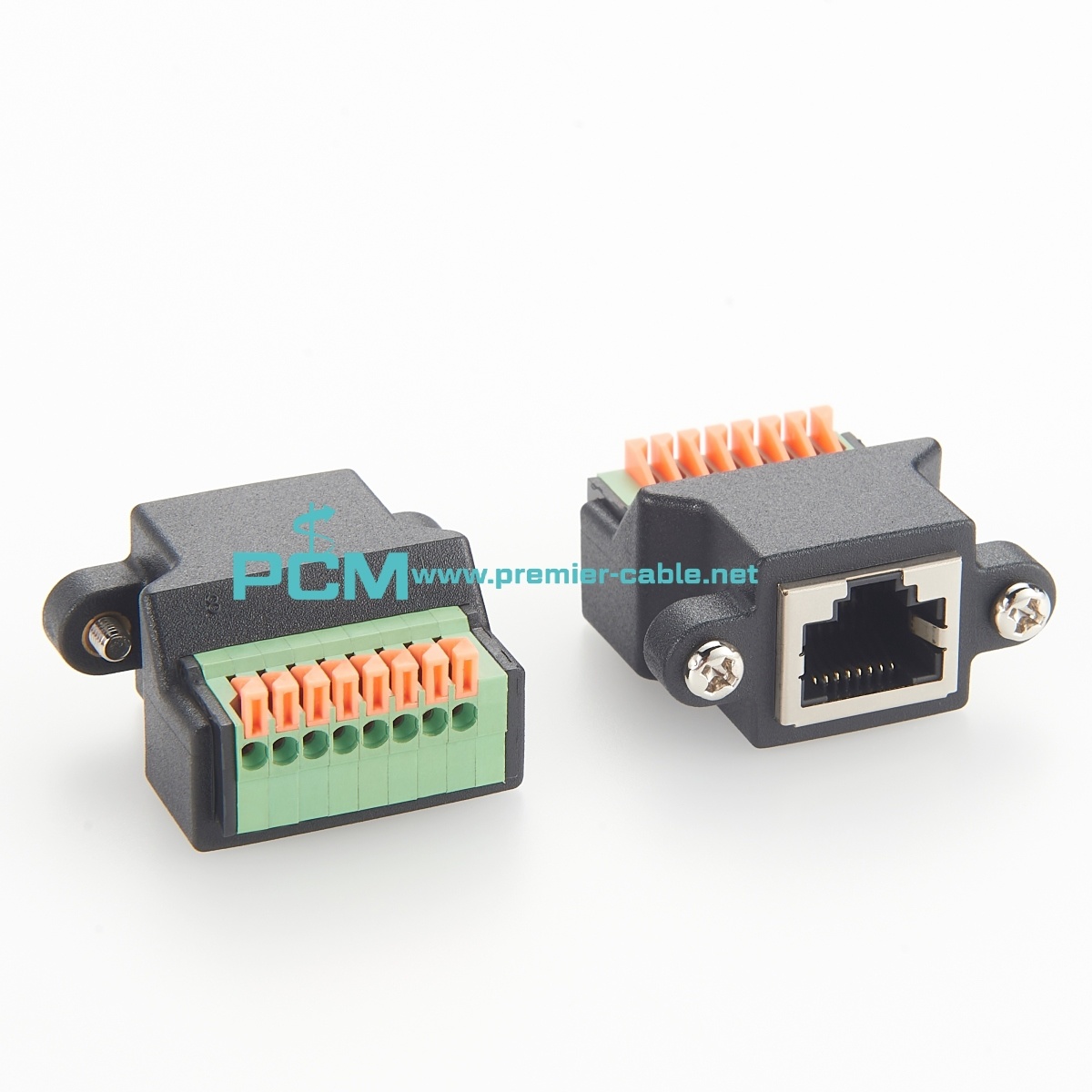

Premier Cable Panel Mount Ethernet Extender Cat5E Terminal


Premier Cable RJ45 Female Connector to 8P8C Screw Terminal


Premier Cable RJ45 8P8C Slim Panel-Mount Breakout Board


Premier Cable CAT5E ethernet panel mount terminal block


Premier Cable RJ45 Panel Mount Screw Terminal Adapter



RJ45 8P8C Panel Mount Screw Terminal Adapter





RJ45 / 8P8C Connector



Designed to be panel mounted



Screw terminal for each of the 8 lines, plus shield




This RJ45 CAT5E Female Plug to 8P8C Female Screw terminals is widely used in networks.



Its design is based on industrial standard panel apertures.




Make connections quickly and reliably with this breakout board, which brings every pin of its 8P8C (RJ45) Modular Jack connector out to screw terminals.



Breakout Board Mounted through a Panel


These breakout boards are designed to be mounted in a panel, thus providing a convenient method of passing an RJ45 connection through a panel. The compact design of this board takes up minimal area on the panel surface, thus potentially allowing many connectors to be mounted in a relatively small area. Although the breakout board footprint is small, provision has been included for wire strain reliefs; holes drilled in the board provide anchor points where tie-wraps can be attached, thus securing the wires at the edge of the board.



All RJ45 signal pins plus the connector shield are brought out to screw terminals.
