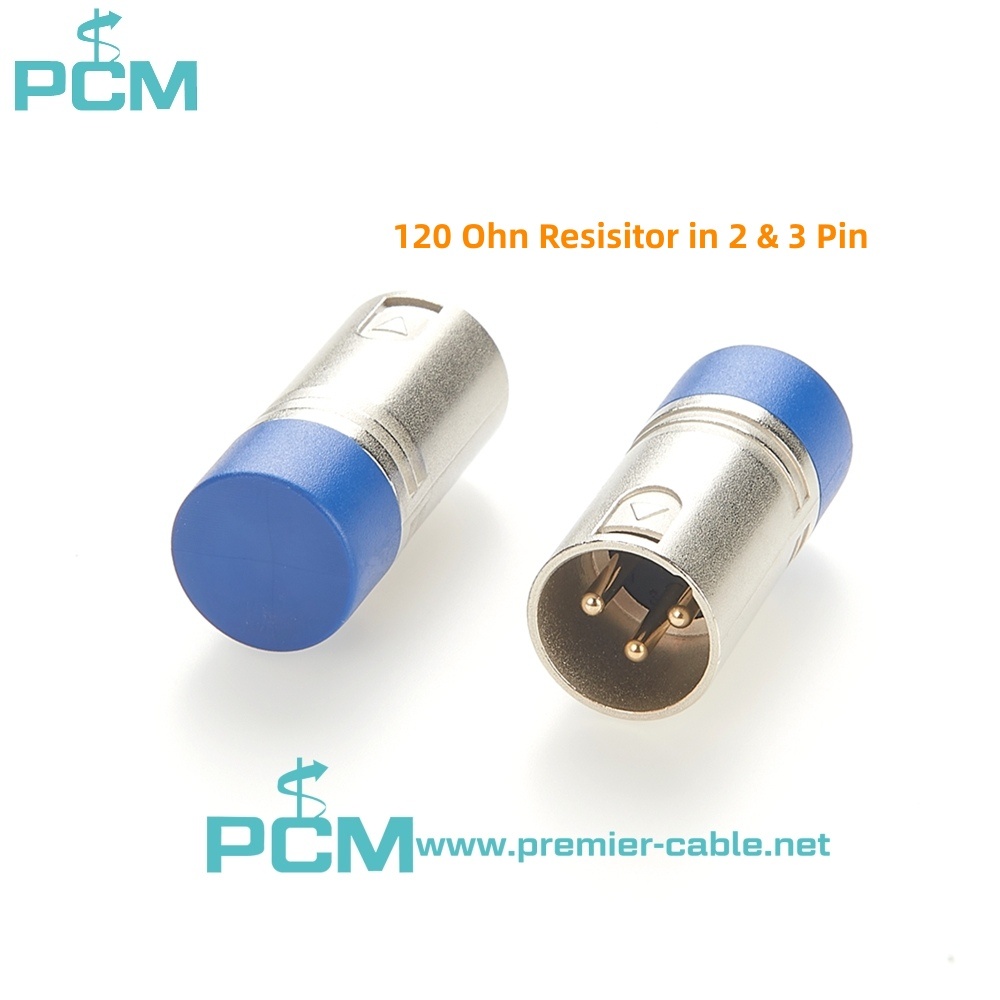

DMX512 XLR 3Pin Male Termination Resistor 120Ohm
Part Number:
PCM-0475
Category:
DMX XLR Cable
Products Description
| Product Name | DMX512 XLR 3 Pin Termination Resistor |
| Part No. | PCM-0475 |
| Connector | XLR 3 Pin Male |
| Contact | Copper, Gold-plated |
| Terminator | 120ohm 1/8W, in 2&3 Pin |
| Certificate | RoHS and REACH compliant |
| Customization | Yes, please contact us for a quote and samples. |
About this Item
PCM Premier Cable, your wire harness expert!
Customization is available for cable lengths, connector types, and other specifications, providing flexible solutions for any application. Contact us now for a bulk price!
The primary function of the DMX termination plug is to prevent signal reflection that occurs when a DMX line is left unterminated, which can cause instability and data errors in a DMX network. By connecting this termination resistor at the end of a DMX chain (usually at the last device or light fixture), the 120 Ohm resistor effectively absorbs the signal, ensuring the integrity of data transmission across the system. It helps avoid flickering lights, delayed responses, or signal loss due to improper termination.
Application
- Theater Productions: For accurate and reliable control of stage lighting, ensuring there is no interference or signal drop-off.
- Concerts and Events: Used in large-scale live performances to maintain stable DMX communication between lighting consoles and rigged lights.
- Architectural Lighting: Ensures that complex lighting setups in commercial or residential applications work seamlessly without signal distortion.
- Film and TV Productions: To guarantee that DMX-controlled lights maintain perfect synchronization with camera work.
- Nightclubs and Venues: Used to maintain a stable lighting network when using DMX-controlled fixtures for ambiance and effects.
