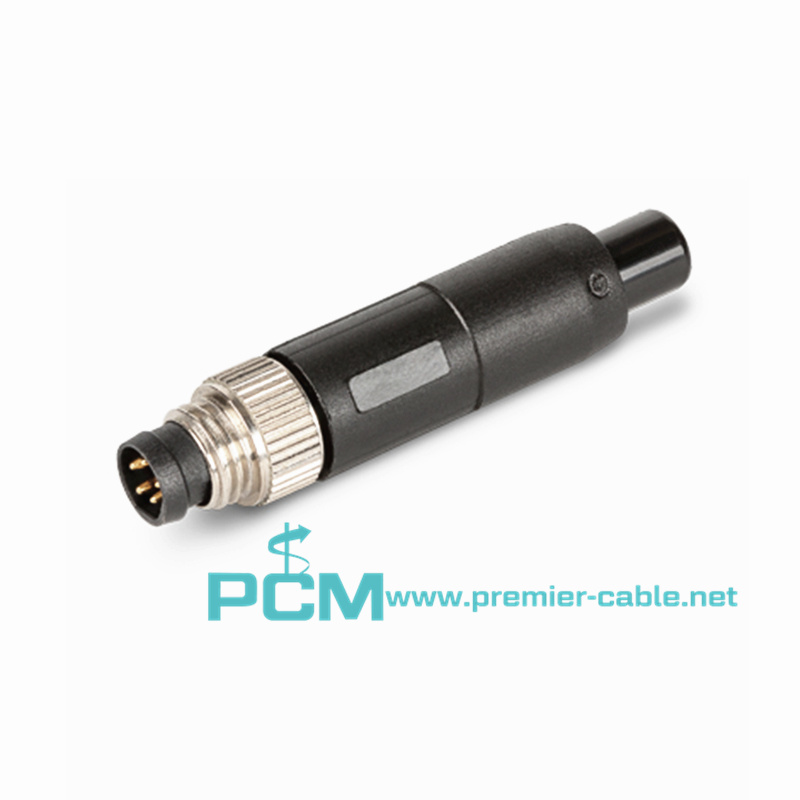

DeviceNet Inline Terminator Resistor M12


M12 DeviceNet Inline Terminator Resistor


DeviceNet Bus Termination Resistor


Micro Inline Termination Resistor



NMEA Cables & Sensors


NMEA 2000 resistor



Terminating resistor M12 for DeviceNet CANopen PROFIBUS




DeviceNet M12 Dummy plug with terminator resistor




Up to 4 AMPS

IEC IP67 Standard

Vibration resistance

Share data between NMEA 2000 devices

Ground circuit mates before other contacts



Micro Termination resistors usually terminate the network by plugging into a tee.



The inline terminator plugs directly into the product with the other end connected to the network cable



The inline terminator is used where the NMEA 2000 network is terminated at a product, for example the top of the mast at a weather instrument or GPS antenna, receiver.



The inline terminator doesn't require a tee and easily fits within an instrument's mounting pipe where a tee wouldn't Rugged, IP-68 rated connectors for continued connection integrity in marine environment



DeviceNet Inline Terminator Resistor M12M12 DeviceNet Inline Terminator Resistor DeviceNet Bus Termination ResistorMicro Inline Termination ResistorTerminating resistor M12 for DeviceNet CANopen PROFIBUS
