CAN Terminator DB9 Female socket

120 Ohm bus termination for High-Speed CAN system

Category:

CAN Bus Cable Adapter


Detail

CAN Terminator DB9 Female socket


CAN Termination Socket DB9


120 Ohm bus termination for High-Speed CAN system


RT between pin 2 and 7



Standard : According to ISO 11898-2



120 Ohm bus termination for High-Speed CAN systems

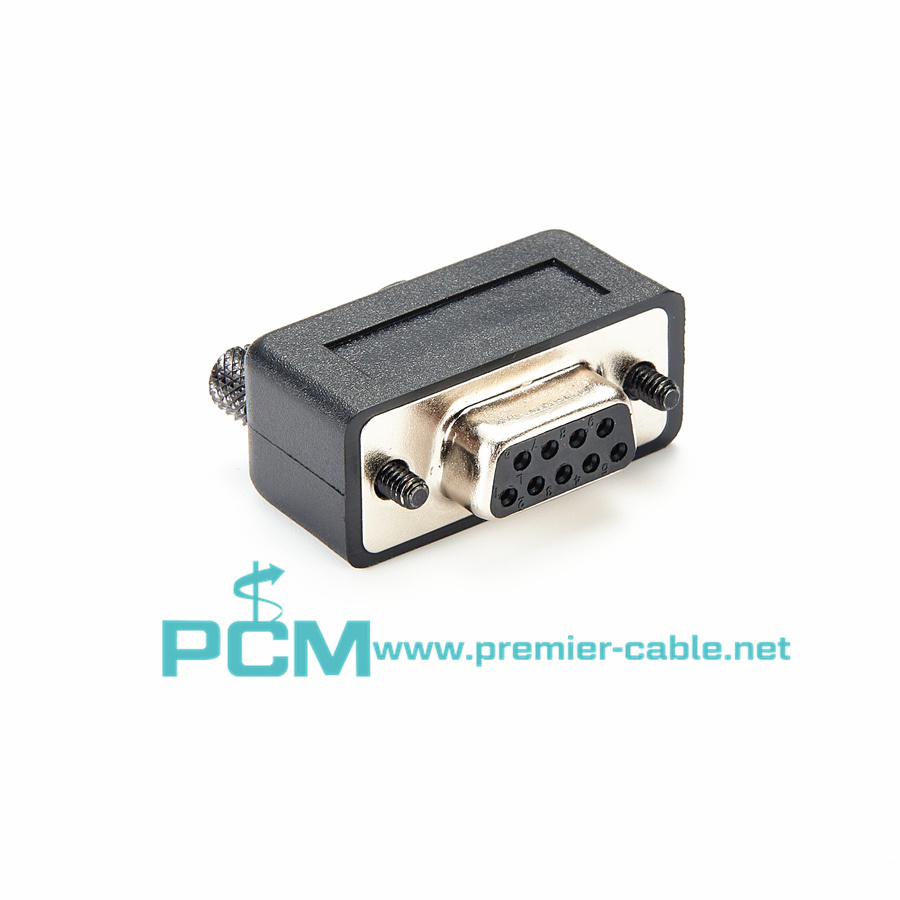

The CAN Terminator is a DB9 female socket that terminates the CAN lines with a 120 ohm resistor.





Difference between CANopen and CAN




CAN only defines the physical layer and the link layer, but does not define the user layer. Users can define some communication conventions on the network according to their own needs;



CANopen defines the user layer on the basis of CAN, that is, it specifies the convention for information exchange between users, software, network terminals, etc.



CAN2.0 is a protocol of physical layer and link layer, which is basically implemented by hardware, while CANOpen is an application layer protocol that is basically implemented by software.



120 Ohm bus termination for High-Speed CAN systemCAN Termination Socket DB9CAN Terminator DB9 Female socket
