Products
Product Center

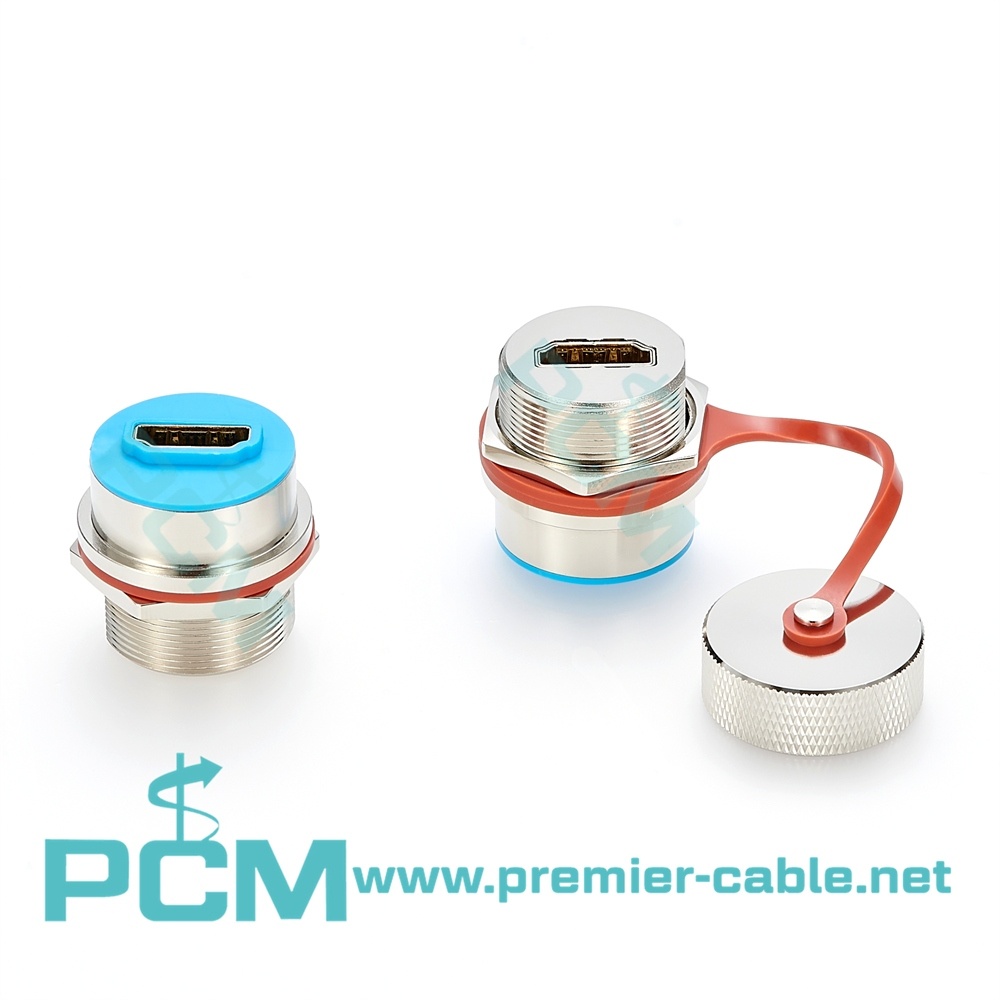

IP67 Metal M25 HDMI Female to Female Panel Mount Bulkhead Coupler with Cap
HDMI Coupler IP68 Rated with Dust Cap, M25 Waterproof HDMI Coupler Female to Female adapter, IP68 Waterproof Outdoor Panel Mount HDMI High Speed Coupler
Category:
IP68 Ruggedized Cable
Detail
| Key Words | HDMI Coupler IP68 Rated with Dust Cap M25 Waterproof HDMI Coupler Female to Female adapter Waterproof HDMI Feed-Thru Coupler Case Side adapter IP68 Waterproof Outdoor Panel Mount HDMI High Speed Coupler Waterproofable HDMI Connector and Cable IP68 Rated Outdoor Adapter Waterproof HDMI Connector IP67 Panel Mount Bulkhead Coupler |
| Product Name | IP67 Metal M25 HDMI Female to Female Panel Mount Bulkhead Coupler with Cap |
| Brand | Premier Cable , OEM |
| Connector | HDMI |
| Panel Mount Type | Screw Locking Mechanism |
| Shell Material | Copper Shell |
| Salt Spray Test | 72H |
| Panel cut-out size | Diameter : 25mm |
| Certificate | UL, Rohs, Reach |
| Gender | HDMI Coupler Female to Female |
| IP Grade | IP67 When Mated |
| Description | IP67 feed-through coupling for installation in distributon boxes with M25 cut-out With built-in HDMI socket |
| Specification | O-rings provide IP67-rated water and dust protection. Circular threaded coupling mounts case side to connect with cable side connector. To achieve waterproof/IP67 protection, the outside HDMI connection must be sealed with waterproof cable gland. Female HDMI panel mount bulk-head connector passes through to female HDMI connector for use with a standard HDMI cable. Supports high-definition video, multi-channel digital audio, HDMI Ethernet Channel, Audio Return Channel, and Additional Color Spaces. |
| Application | Marine Process Control Portable computers Harsh environments Factory automation Medical equipment Industrial computing Outdoor environments Industrial Touch Monitor Portable broadcast equipment Outdoor Embedded Touch Monitor Outdoor audio / video equipment Full IP67 High Brightness Touch Monitor |
