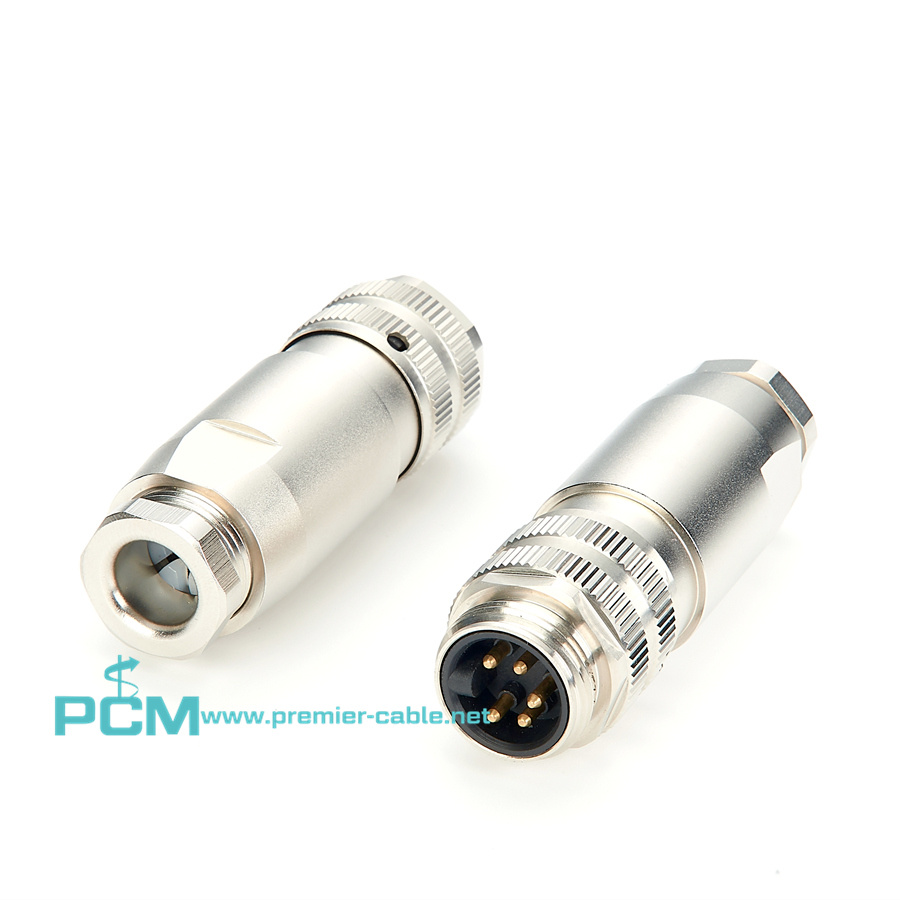

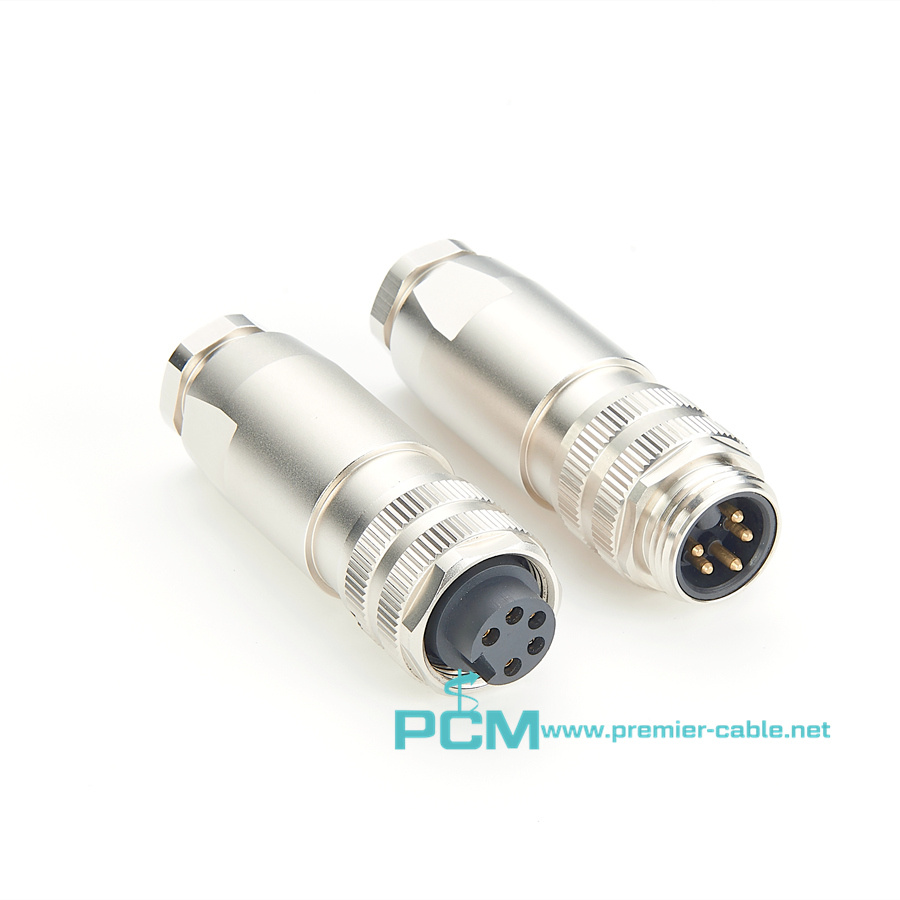

NMEA2000 Mini-C Field Wireable Connector

NMEA Mini Field-Attachable Connector

NMEA 2000 Mini Power Connector

NMEA2000 Mini-C Field Connector

7/8 Mini Connector Field Wireable

5 Contacts, Cable Mount, 7/8 Connector


Mini 7/8" Field Attachable Connector

Mini Field-Attachable Connectors

The Mini-C connector is used on thick backbones, heavy cable

The Micro-C connector is used on thin backbones, light cable


Each cable uses different wire gauges for the different signal lines.

The power lines are 22AWG for the light version and 16AWG for the heavy version.

The signal lines are 24AWG for the light version and 18AWG for the heavy version.

Maximum current is also defined as 3 amps for the light version and 8 amps for the heavy version.

The current difference indicate why one user might prefer a thick backbone over a thin one.

Field-attachable connections allow you to make field connections to bulk cable.

The color-coded screw terminals match the individual wire colors found within the bulk cables for error-free field installation

Color-coded screw terminators make for error-free field installation, Rugged housing material designed to withstand harsh marine environments

Specifications


Number of Contacts    5

Mounting Type    Cable Mount

Connector Size    7/8

Plug/Socket    Plug

Contact Gender    Male

Termination Method    Screw

IP Rating    IP65, IP67

Current Rating    9.0A

Body Orientation    Right Angle

Voltage Rating    250 V

Mating Type    Plug-In

Housing Material    Polymer

Maximum Operating Temperature    +85°C

Minimum Operating Temperature    -25°C
