Products
Product Center
Grounding Kits Earthing Kits for RF Coaxial Cable
Category:
AISG Cables
Detail
Lightning Protection Grounding Kit for cable
Earthing Kits for RF Coaxial Cable
Grounding Kits Earthing Kits for RF Coaxial Cable
Feeder Cable Earthing Kit Lightning Protection Buckle Grounding Kit
Andrew Mid-Span Grounding Kit - 1/2"" Coaxial Cable
Coax grounding kit and lightning protection
Lightning Protection Grounding Kit for cable

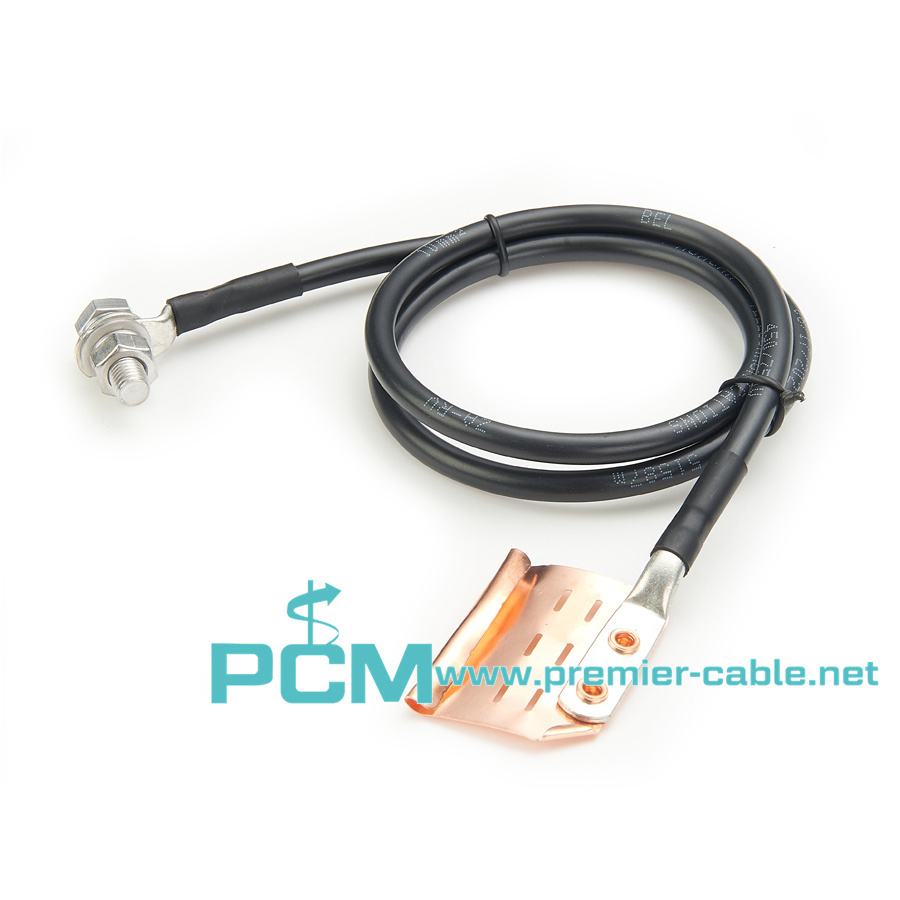

Coaxial Cable Grounding Kit
Standard Grounding Kit for 1/4 in and 3/8 in corrugated and braided coaxial cable, FSJ4-50B cable, and elliptical waveguide 240 and 380
Lightning-proof earthing cable feeder grounding kit
Andrew Mid-Span Grounding Kit - 1/2"" Coaxial Cable
Key Features
Mid-span framework grounding
Commscope/Andrew SureGround® Grounding Kit
Suit 7/8"" cable such as LDF4-50 Heliax
Outer conductor only.
Usage
This cable grounding kit provides a secure grounding point to the outer conductor of 1/2"" feeder cables (such as LDF4-50A Heliax) using a mechanical clamping method
Suitable for both corrugated and smoothwall cable varieties
Cable runs should be attached to a good electrical ground at the top of the tower near the antenna, at the bottom of the tower, and at the point where the cable enters the transmitter building
If the tower is used as a broadcast radiator, only ground the cable at the first quarter wavelength point, (broadcast frequency) measured vertically from the base of the tower.
